Made by Haris IbrahimbegovićUS Load Planner
Truck Pallet Optimizer
Truck
630" × 102" × 110"Enter interior dimensions for your selected trailer. Values apply instantly to the visualization.
Bulk import
Paste multiple lines in a popup and preview before importing.
Automatic placement
Drag pallets manually for precise placement, or use the automatic solver to optimize the layout.
Visualization
Canvas equals trailer footprint + 100px boundary. Drag pallets from staging; press R to rotate once placed. Pallets cannot leave the trailer bounds.
Use keyboard + and - to zoom
Pallet list
Add a pallet to get started.
Metrics
Pallets Entered
0
Placed
0
Remaining
0
Weight (lbs)
0
Utilization
0%
Truck Information
53' Dry Van
52'6"L x 8'6"W x 9'2"H
Specs:
Interior Dimensions: 52'6"L x 8'6"W x 9'2"H
Max Weight Capacity: Up to 45,000 lbs.
Pallets: 28-30 (single stacked), 58-60 (double stacked) – standard-sized pallet dimensions (48 x 40 x 48)
Common Features: Wood or metal floors, E-tracks (logistics posts), roll or swing doors, food-grade interiors, air-ride.
Best For:
General freight, boxed goods, consumer products, food & beverage (non-refrigerated), dry goods, dry pallets.

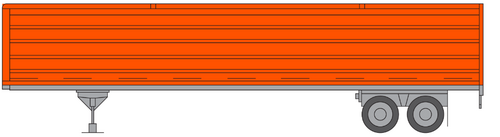

Truck Image
